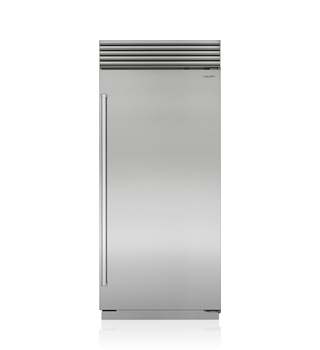

Features

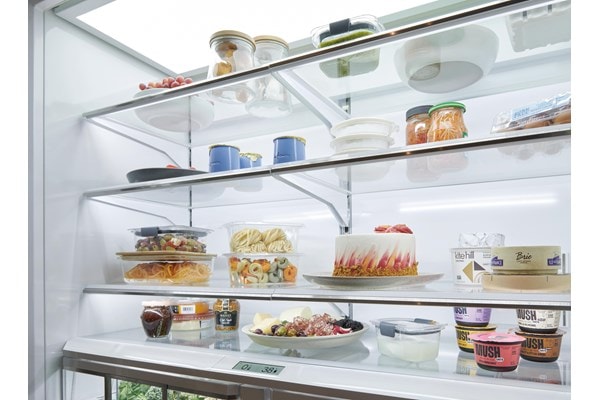

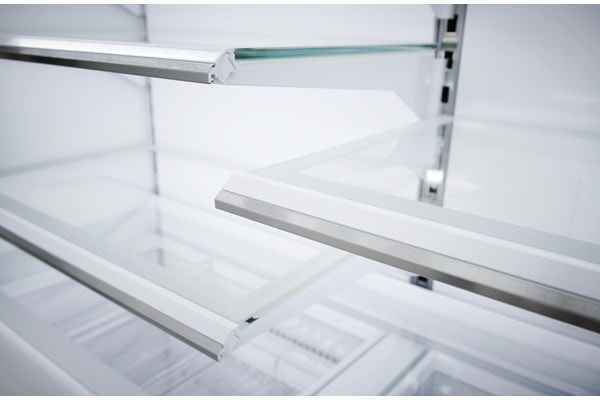

- ClearSight™ LED lighting system fully illuminates the interior and reduces shadows
- Sleek stainless accents trim the interior, matching the sophistication of the exterior

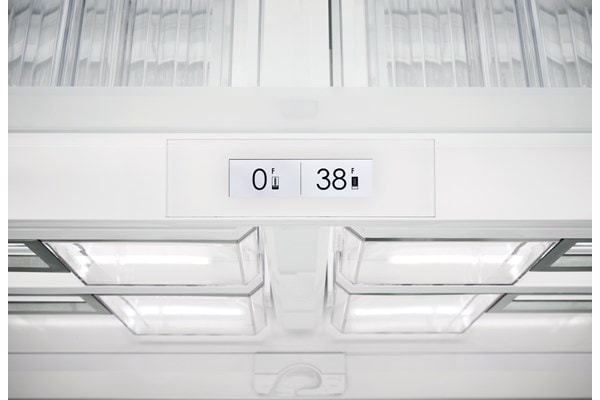

- Touch control panel is conveniently located for easy access at the tap of a finger
- Night Mode optimizes the interior lighting based on the detected ambient light, reducing the brightness by 90% in dim environments
- Position adjustable door bins at various heights to accommodate assorted items
- The removable ice bin with articulating handle ensures portable, easy access to ice
- Fresh-tasting, odourless, filtered ice ready on demand; activate Max Ice Mode to temporarily increase ice production
- Stainless-steel exterior and tubular or pro handles to match other Sub-Zero and Wolf products
- Sub-Zero offers an industry-leading full two-year warranty on appliances, along with a full five-year sealed system warranty
Model Options
- ICBCL3650F/S/P/L
- ICBCL3650F/S/P/R
- ICBCL3650F/S/T/L
- ICBCL3650F/S/T/R

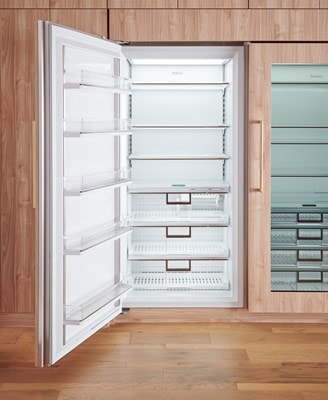

Interior
Freezer Specifications
- 4 stainless-steel freezer shelves (3 adjustable; 1 stationary)
- 3 storage drawers with adjustable dividers
- 5 adjustable door bins
- Automatic ice maker with removable ice bin with handle
- Water filtration system
Specifications

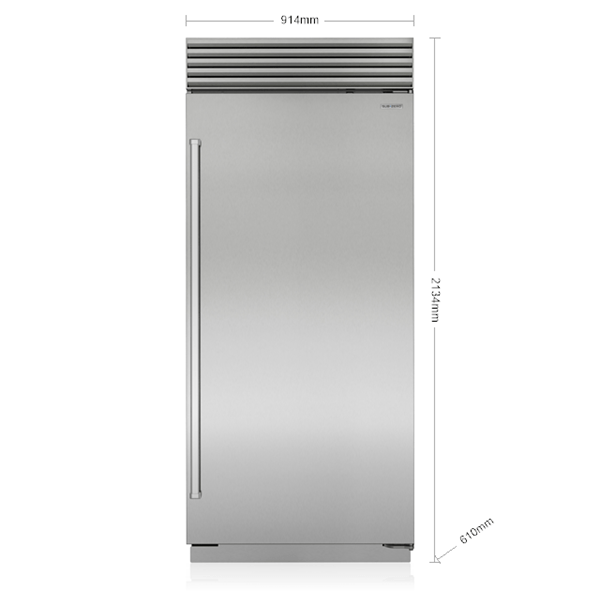

- Overall Dimensions: 914mm W x 2134mm H x 610mm D
- Freezer Capacity: 637 Liters
- Star-K Certified
- Energy Usage and Rating: 4.5 stars (297 kWh/yr)
- Receptacle: 3-prong grounding-type
- Electrical Supply: 220-240 VAC; 50/60 Hz
- Electrical Service: ≤ 4 A
User Guides
CAD Libraries
- 3D Studio Max (3DS) En-Au
- 3D Studio Max (3DS) En-Au
- 2D AutoCad (DWG) au
- 3D Studio Max (3DS) En-Au
- 3D Studio Max (3DS) En-Au
- 3D Studio Max (MAX)
- 3D Studio Max (MAX)
- 3D Studio Max (MAX)
- 3D Studio Max (MAX)
- Wavefront 3D (OBJ)
- Wavefront 3D (OBJ)
- Wavefront 3D (OBJ)
- Wavefront 3D (OBJ)
- 3D AutoCad (DWG) au
- 3D AutoCad (DWG) au
- 3D AutoCad (DWG) au
- 3D AutoCad (DWG) au
- Revit Files (RFA)
- Revit Files (RFA)
- Revit Files (RFA)
- Revit Files (RFA)
- SketchUp (SKP)
- SketchUp (SKP)
- SketchUp (SKP)
- SketchUp (SKP)
- ArchiCad (GSM)
- ArchiCad (GSM)
- ArchiCad (GSM)
- ArchiCad (GSM)
- AutoCad (DXF)
- AutoCad (DXF)
- AutoCad (DXF)
- AutoCad (DXF)
- 2D AutoCad (DWG) au
- 2D AutoCad (DWG) au
- 2D AutoCad (DWG) au
Accessories
- Filters and Cleaning
- Replacements and Add-ons
-
- Replacement water filter
Why Sub-Zero?
Envisage the possibilities
Pro tips
Consider these insider suggestions as you design your space:

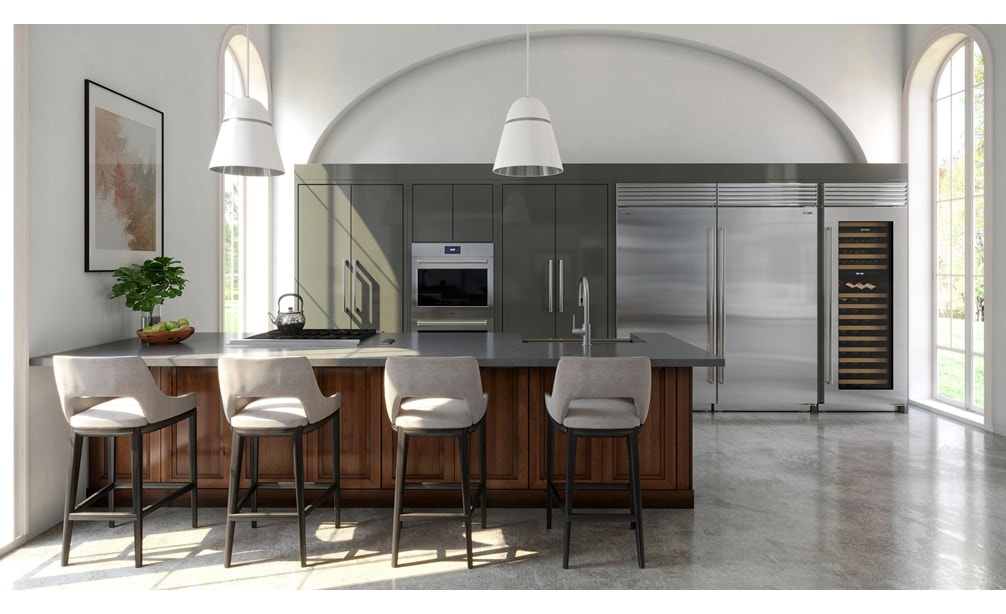

- Install multiple Sub-Zero units together for increased personalization
- Select right or left Sub-Zero door hinges to designate how doors swing open
- Cover the area between the unit and floor with optional kickplates
- Coordinate all of your appliances with Sub-Zero pro, tubular, or custom handles
