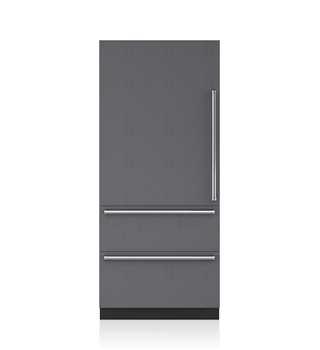

91 CM Designer Over-and-Under Refrigerator/Freezer with Internal Dispenser and Ice Maker - Panel Ready

Name: 91 CM Designer Over-and-Under Refrigerator/Freezer with Internal Dispenser and Ice Maker - Panel Ready
Brand: Sub-Zero

Model # ICBDET3650CIID

See model options

Download reference guide

91 CM Designer Over-and-Under Refrigerator/Freezer with Internal Dispenser and Ice Maker - Panel Ready

Hover over image to zoom.

Pinch to zoom

Images are for reference only.

ClearSight™ LED lighting system fully illuminates the interior and reduces shadows
Sleek stainless accents trim the interior, matching the sophistication of the exterior
Easily customise settings—from lighting to humidity—with the tap of a finger via the conveniently accessible touch control panel
Position adjustable door shelves at various heights to accommodate assorted items
Sub-Zero offers an industry-leading full two-year warranty on appliances, along with a full five-year sealed system warranty
Ready to be fitted with custom panels and handles to blend with cabinetry
Split Climate™ intelligent cooling system revolutionises Sub-Zero’s already-superior preservation capabilities, keeping food even fresher for longer
Night Mode optimizes the interior lighting based on the detected ambient light, reducing the brightness by 90% in dim environments
Lift the base of the flip-up dairy compartment to store taller items on the shelf below
Nano coating lines the perimeter of each glass shelf to create a hydrophobic barrier that helps contain spills
The easily accessible NASA-inspired air purification system scrubs the air of ethylene and odour every 20 minutes
Delivers fresh-tasting, filtered water through an internal dispenser located discreetly within the refrigerator
Fresh-tasting, filtered ice ready on demand; activate Max Ice Mode to temporarily increase ice production

Refrigerator Specifications

LED refrigerator and freezer lights
4 glass refrigerator shelves (3 adjustable; 1 stationary)
Crisper drawer with adjustable dividers
3 door bins (2 adjustable; 1 stationary)
1 flip-up dairy compartment
Internal water dispenser

Freezer Specifications

2 full-extension roll-out freezer drawers; one with adjustable dividers
Automatic ice maker with removable ice container

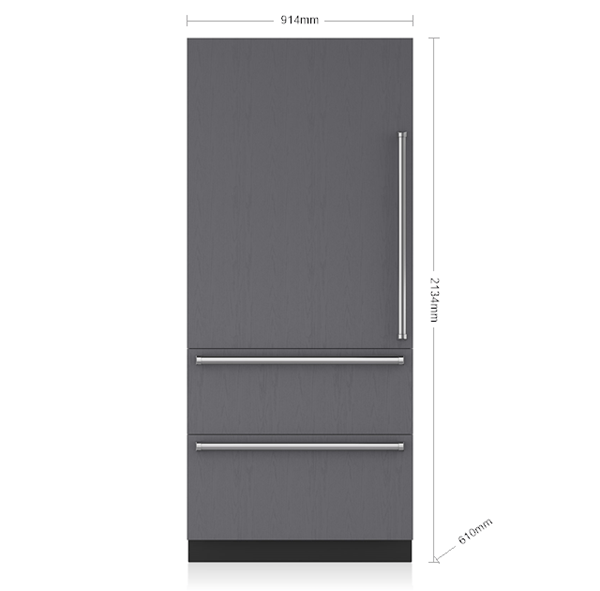

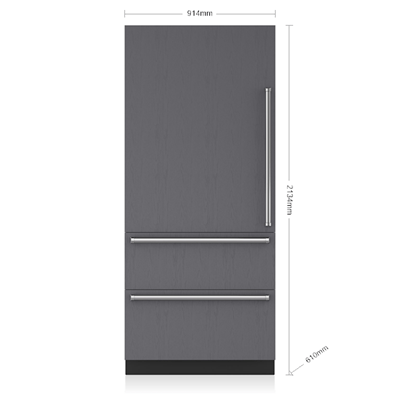

Overall Dimensions: 914mm W x 2134mm H x 610mm D
Refrigerator Capacity: 402 Liters
Freezer Capacity: 193 Liters
Energy Usage and Rating: 4 stars (414 kWh/yr)
Receptacle: 3-prong grounding-type
Electrical Supply: 220-240 V, 50/60 Hz
Electrical Service: ≤ 4 A

Filters and Cleaning
- Air Purification Cartridge
- Water Filter

Replacements and Add-ons
- Egg Container

Installation
- Dual Installation Kit Handle-to-Handle
- Dual Installation Kit Hinge to Hinge
- Reduced Toekick Divider
- Stainless Steel Side Panel
- Dual Installation Kits
- Stainless Steel Dual Installation Kickplates

View Full Specifications

Features

ClearSight™ LED lighting system fully illuminates the interior and reduces shadows
Sleek stainless accents trim the interior, matching the sophistication of the exterior
Easily customise settings—from lighting to humidity—with the tap of a finger via the conveniently accessible touch control panel
Position adjustable door shelves at various heights to accommodate assorted items
Sub-Zero offers an industry-leading full two-year warranty on appliances, along with a full five-year sealed system warranty
Ready to be fitted with custom panels and handles to blend with cabinetry
Split Climate™ intelligent cooling system revolutionises Sub-Zero’s already-superior preservation capabilities, keeping food even fresher for longer
Night Mode optimizes the interior lighting based on the detected ambient light, reducing the brightness by 90% in dim environments
Lift the base of the flip-up dairy compartment to store taller items on the shelf below
Nano coating lines the perimeter of each glass shelf to create a hydrophobic barrier that helps contain spills
The easily accessible NASA-inspired air purification system scrubs the air of ethylene and odour every 20 minutes
Delivers fresh-tasting, filtered water through an internal dispenser located discreetly within the refrigerator
Fresh-tasting, filtered ice ready on demand; activate Max Ice Mode to temporarily increase ice production

Model Options

Interior

Refrigerator Specifications

LED refrigerator and freezer lights
4 glass refrigerator shelves (3 adjustable; 1 stationary)
Crisper drawer with adjustable dividers
3 door bins (2 adjustable; 1 stationary)
1 flip-up dairy compartment
Internal water dispenser

Freezer Specifications

2 full-extension roll-out freezer drawers; one with adjustable dividers
Automatic ice maker with removable ice container

Specifications

Overall Dimensions: 914mm W x 2134mm H x 610mm D
Refrigerator Capacity: 402 Liters
Freezer Capacity: 193 Liters
Energy Usage and Rating: 4 stars (414 kWh/yr)
Receptacle: 3-prong grounding-type
Electrical Supply: 220-240 V, 50/60 Hz
Electrical Service: ≤ 4 A

User Guides

CAD Libraries

Accessories

Filters and Cleaning
- Air Purification Cartridge
- Water Filter

Replacements and Add-ons
- Egg Container

Installation
- Dual Installation Kit Handle-to-Handle
- Dual Installation Kit Hinge to Hinge
- Reduced Toekick Divider
- Stainless Steel Side Panel
- Dual Installation Kits
- Stainless Steel Dual Installation Kickplates

View Full Specifications

Why Sub-Zero?

DUAL REFRIGERATION = OPTIMAL HUMIDITY

Technology pioneered by Sub-Zero features two separate cooling systems so fresh food stays fresher longer in the cool, moist air of the refrigerator. Frigid, dry air prevents frost and freezer burn in the freezer–optimum preservation conditions for each type of food.

AIR PURIFICATION SYSTEM FIGHTS SPOILAGE, ODOURS

Many fresh foods emit ethylene gas, a naturally-occurring compound that hastens food ripening and spoilage. Sub-Zero refrigerators come with an air purification system (based on technology developed by NASA) that scrubs the air of ethylene and odour every 20 minutes.

ADVANCED TEMPERATURE CONTROL

Sub-Zero’s microprocessor controls the interior temperature to within one degree of its setpoint. An advanced air seal around all four sides of the door prevents leaks while conserving energy.

FRESH FILTERED WATER

Sub-Zero's innovative internal water dispenser delivers water free of contaminants, chlorine taste, and odour.

WORRY-FREE WARRANTY

Sub-Zero offers an industry-leading full two-year warranty on appliances, along with a full five-year sealed system warranty. Learn more.

RIGOROUS TESTING

Built with premium-grade materials, Sub-Zero products are designed to last. Major components are subjected to extreme stress tests prior to going into the final design, and every major function is tested before shipping.
