ICBDF364G

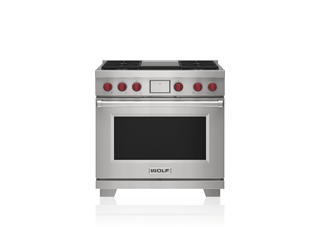

91 cm Dual Fuel Range - 4 Burners and Infrared Teppanyaki
Guides
PDF
Technical Specifications
- Dimensions 911mmW x 937mmH x 749mmD
- Oven 1 Interior Dimensions 762mmW x 419mmH x 483mmD
- Oven 1 Overall Capacity 153 L
- Door Clearance 495mm
- Weight 202 kg
ZIP
Dimensions
Standard Installation
Electrical Requirements
- Electrical Supply 220-240 VAC; 50/60 Hz
- Electrical Service 19 amp
Electrical Location Illustration
Gas Requirements
- Gas Inlet Class B or Class D hose assembly
Gas Supply Illustration
Model Options
- ICBDF364G
- ICBDF364G-LP
Feature Overview
-
- Rigorously tested for decades of use
- Exceptional support from our Customer Care team
- Dual-stacked burners produce up to 16 MJ/h
- Continuous cast-iron grates for easy movement of pots and pans
- Cobalt blue porcelain interior
- Dual convection oven for faster, more consistent cooking
- Spark ignition system re-ignites if flame goes out
- Heavy-gauge stainless steel
- Exclusive pivoting control panel
- Red, black or stainless steel control knobs
- Temperature probe cooks to ideal doneness and lets you know when it's ready
- Self clean, delayed start, timed cook, Sabbath mode and more
- Burners capable of delivering less than 0.5 MJ for premier simmer performance
- 10 cooking modes make meals easy
- Burners capable of delivering less than 300 Btu for premier simmer performance
- 10 cooking modes make meals easy
- 4 dual-stacked burners plus 15 MJ/h infrared teppanyaki
- Continuous cast-iron grates for easy movement of pots and pans
- Cobalt blue porcelain interior
- Dual-stacked burners produce up to 16 MJ/h
- Dual convection oven for faster, more consistent cooking
- Spark ignition system re-ignites if flame goes out
- Heavy-gauge stainless steel
- Exclusive pivoting control panel
- Red, black or stainless steel control knobs
- Temperature probe cooks to ideal doneness and lets you know when it's ready
- Self clean, delayed start, timed cook, Sabbath mode and more
Top Configuration
Rangetop Specifications
-
- 1 - 9 MJ/h Burner
- 3 - 16 MJ/h Burner
- 1 - 15 MJ/h Teppanyaki
Accessories
-
- Stainless steel, brass or chrome bezels
- 13 cm and 25 cm stainless steel risers, and 51 cm riser with shelf
