ICBDD45

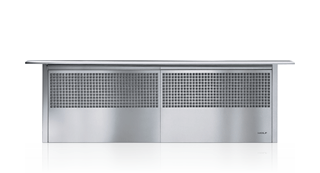

114 cm Downdraft Ventilation
Guides
PDF
Technical Specifications
- Dimensions 1143mmW x 356mmH x 51mmD
- Weight 39 kg
ZIP
Dimensions
cooktop-installation
Electrical Requirements
- Electrical Supply 220-240 VAC; 50/60 Hz
- Electrical Service ≤ 6 A
Electrical Location Illustration
Model Options
- ICBDD45
Feature Overview
-
- Lowers when not in use
- Heavy-gauge stainless steel
- Delay-off feature
- Delay-off feature shuts off blower after approximately 5 minutes
- Reversible motor box can be installed on either side of the downdraft
- Adjustable discharge lets you negotiate around ducting
- Blower required (internal blower available)
- Remote control operation from up to 3 m away
- Rises 356 mm to whisk away smoke and odours
Blower Options
-
- 900 CMH Internal Blower
discharge
-
- 150 mm round internal or 250 mm round remote
Accessories
-
- Trim kit for installation with sealed burner rangetop
- Make-up air damper
