ICBDF48450CG/S/P

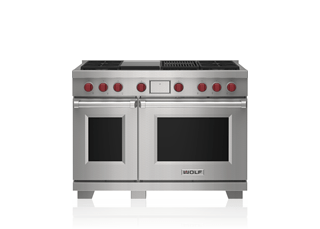

122 cm Dual Fuel Range - 4 Burners, Infrared Chargrill and Infrared Teppanyaki
New Model
Guides
PDF
Technical Specifications
- Dimensions 1216mmW x 929mmH x 749mmD
- Oven 1 Interior Dimensions 356mmW x 419mmH x 483mmD
- Oven 2 Interior Dimensions 635mmW x 419mmH x 483mmD
- Oven 1 Overall Capacity 76 L
- Oven 2 Overall Capacity 144 L
- Door Clearance 533mm
- Weight 340 kg
ZIP
DWG
Dimensions
Electrical Requirements
- Electrical Supply 220-240 VAC; 50/60 Hz
- Electrical Service 38.9 amp
Gas Requirements
- Gas Inlet Refer to Design Guide and Installation Guide for gas requirements
Model Options
- ICBDF48450CG/S/P
- ICBDF48450CG/S/P/LP
Feature Overview
-
- Wolf’s patented gas dual-stacked, sealed burner design provides precise high-to-low temperature control and a spark ignition system that reignites the burner automatically
- Wolf’s Dual VertiFlow™ convection system provides reliably even heat, reduces hot and cold spots, and enables consistent multi-rack cooking
- Four dual-stacked gas burners provide high-to-low temperature control, from fast boils and intense sears to true simmers and worry-free melts
- Gourmet Mode features nearly 50 presets that automatically control the oven to ensure delicious results
- The adjustable infrared chargrill features a high and low setting, aptly handling a range of foods from steaks and burgers to delicate fish fillets and vegetables
- The redesigned teppanyaki (griddle) features even, precise heat, handling breakfast with equal finesse as seared burgers and stir-fried vegetables
- Ten cooking modes, including Bake, Broil, Convection, Convection Roast, Dehydrate, Gourmet, Proof, Roast, Stone, and Warm, were developed by Wolf chefs to maximize the performance of your oven
- For improved temperature control and safety, the spark ignition system reignites burners automatically
- The full-color touch screen is intuitive and easy to read, discreetly hiding away when not in use
- LED backlit control knobs illuminate when in use, indicating which burners are active
- The oven offers self-clean, delayed start, timed cook, and Sabbath features
- Temperature Probe
- Create a cohesive look in your kitchen with the range’s stainless construction, pro-style handles, and choice of iconic red, black, brushed stainless, brushed brass, or brushed grey knobs
Top Configuration
Rangetop Specifications
-
- 1 - 19 MJ/h Burner
- 2 - 13 MJ/h Burner
- 1 - 10 MJ/h Burner
- 1 - 16 MJ/h Chargrill
- 1 - 16MJ/h Teppanyaki
Accessories
-
- 2-burner wok grate
- Broiler pan
- Dehydration rack set
- Full-extension ball-bearing rack
- Standard oven rack
- Bake stone kit
- Baking sheet
- Filler trim
- Temperature probe
- Stainless steel kickplates
- 13 cm and 25 cm stainless steel risers, and 51 cm riser with shelf
