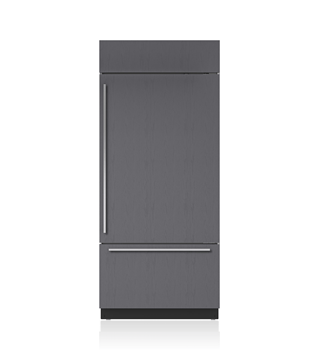

91 CM Built-In Over-and-Under Refrigerator/Freezer with Internal Dispenser - Panel Ready

Sub-Zero91 CM Built-In Over-and-Under Refrigerator/Freezer with Internal Dispenser - Panel Ready ICBBI-36UID/O

Technical Specifications

  • Dimensions 914mmW x 2134mmH x 610mmD
  • Door Clearance 946mm
  • Drawer Clearance 600mm
  • Weight 234 kg
  • Refrigerator Gross Capacity 438 L
  • Freezer Gross Capacity 147 L
  • Energy Star
  • Star-K Certified


Standard Installation

Electrical Requirements

  • Electrical Supply 220-240 VAC; 50/60 Hz
  • Electrical Service ≤ 4 A

Electrical Location Illustration

Plumbing Supply Illustration

Model Options


Feature Overview

    • LED Lighting for brighter interior
    • Dual refrigeration keeps food fresher longer
    • Air purification system fights spoilage, odours
    • Microprocessor control assures peak performance
    • Crispers and deli drawers in low-temp, high-humidity zones for optimum freshness
    • Over-and-under refrigerator/freezer storage
    • Freshness cards for maximum food preservation
    • Magnetic door seal system locks in cold air
    • Automatic ice maker with "max ice" feature
    • Adjustable shelves for maximum convenience
    • Discreet interior water dispense with advanced filtration
    • Overlay design accepts cabinetry panels of all kinds

Refrigerator Specifications

    • Internal water dispenser
    • 3 Adjustable glass shelves
    • 1 High-humidity drawer with dividers
    • 1 Storage drawer with dividers
    • 2 Adjustable door shelves
    • 1 Stationary door shelf
    • Adjustable dairy compartment
    • Air purification system

Freezer Specifications

    • Automatic ice maker
    • Full-extension roll-out freezer drawer
    • Two-tier wire storage baskets
    • Water filtration system


    • Grilles for 2108 mm or 2235 mm finished height (2134 mm is standard)
    • Dual installation kit with or without dual wide grille - 2134 mm finished height
    • Flush inset panels in stainless steel with tubular or pro handles
    • Full-length standard and extended framed handles
    • Framed front panels in white or stainless steel
    • Custom front panel mounting kit
    • Stainless Steel Pro Handles
    • Stainless Steel Tubular Handles

Interior View
